| Allmänt |

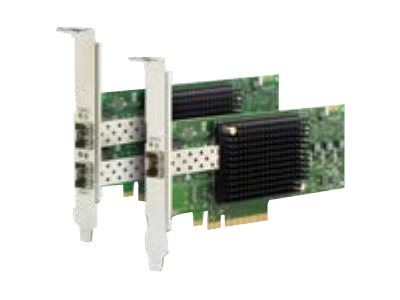

| Typ av enhet | Värdbussadapter |
| Formfaktor | Instickskort |
| Gränssnittstyp (buss) | PCI Express 3.0 x8 |
| Version av PCI-specifikation | PCIe 3.0 |
| Nätverk |
| Portar | 32Gb Fibre Channel x 2 |
| Anslutningsteknik | Kabelansluten |
| Datalänkprotokoll | 32Gb Fibre Channel Gen 6 (Short Wave) |
| Fibre Channel | FC-DA, FC-FS, FC-GS-2, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-Tape, FCP-4, FCP-2, FC-PI-2, FC-GS-5, FCP-3, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-HBA, FC-PI-5, FC-LS-2, FC-DA-2, SSC-2, SBC-2, SPC-3, FC-PI-6, SBC-3, SPC-4, SSC-4, SSC-3 |
| Dataöverföringshastighet | 28.05 Gbps |
| Processor / Minne |
| Processor | 1 x XE501 |
| Expansion/Anslutning |
| Gränssnitt | 2 x 32Gb Fibre Channel - LC multiläge |
| Diverse |
| Inkluderade tillbehör | Hållare för låg version |
| Standarder som följs | CSA, UL, FCC, TUV Bauart, BSMI Class A, ICES Class A, VCCI Class A, MSIP Class A, China RoHS, RCM, EU RoHS |
| Programvara / Systemkrav |
| Operativsystem erfordras | SUSE Linux Enterprise Server, Microsoft Windows, Red Hat Enterprise Linux, VMware vShpere |
| Dimensioner och vikt |
| Bredd | 16.764 cm |
| Höjd | 6.891 cm |
| Tillverkarens garanti |
| Service och support | Begränsad garanti - förtida byte av hårdvara - 3 år |
| Miljöparametrar |
| Min temperatur vid drift | 0 °C |
| Max temperatur vid drift | 55 °C |
| Luftfuktighet vid drift | 5 - 95 % (icke-kondenserande) |
| Kompatibilitetsinformation |
| Designat för | Cisco UCS C220 M5SX SFF, C240 M5 LFF Rack Server, C240 M5 SFF Rack Server, C460 M4 Rack Server for SAP HANA Scale-Up (Tracer), Smart Play 8 C240 M4 SFF Entry Plus (Tracer), Smart Play C220 M4 SFF Performance, SmartPlay Select C220 M4 Storage Bundle 5, SmartPlay Select C220 M4S, SmartPlay Select C220 M4S Advanced 1 (Tracer), SmartPlay Select C220 M4S Advanced 3, SmartPlay Select C220 M4S Basic 2, SmartPlay Select C220 M4S High Core 1, SmartPlay Select C220 M4S High Core 2, SmartPlay Select C220 M4S Standard 1 (Tracer), SmartPlay Select C220 M4S Standard 2, SmartPlay Select C220 M4SX Performance 1, SmartPlay Select C220 M4SX Performance 2, SmartPlay Select C220 M4SX Performance 3, SmartPlay Select C220 M5 Standard 2, SmartPlay Select C220 M5S Standard 1, SmartPlay Select C220 M5SX Advanced 1, SmartPlay Select C220 M5SX Standard 2, SmartPlay Select C240 M4L, SmartPlay Select C240 M4L High Frequency 1 (Not Sold Standalone), SmartPlay Select C240 M4L High Frequency 1 (Tracer), SmartPlay Select C240 M4L High Frequency 2 (Not Sold Standalone), SmartPlay Select C240 M4L High Frequency 2 (Tracer), SmartPlay Select C240 M4S Advanced 1, SmartPlay Select C240 M4S Advanced 2, SmartPlay Select C240 M4S Basic 1, SmartPlay Select C240 M4S High Core 1, SmartPlay Select C240 M4S High Core 2, SmartPlay Select C240 M4S Standard 1, SmartPlay Select C240 M4S Standard 2, SmartPlay Select C240 M4S Standard 3, SmartPlay Select C240 M4SX, SmartPlay Select C240 M4SX Advanced 1 (Tracer), SmartPlay Select C240 M4SX Basic 1, SmartPlay Select C240 M4SX High Core 1, SmartPlay Select C240 M4SX High Frequency 1 (Tracer), SmartPlay Select C240 M4SX High Frequency 2 (Tracer), SmartPlay Select C240 M4SX Medium, SmartPlay Select C240 M4SX Performance 2, SmartPlay Select C240 M4SX Standard 1, SmartPlay Select C240 M4SX Standard 1 (Tracer), SmartPlay Select C240 M5 Advanced 2, SmartPlay Select C240 M5SX, SmartPlay Select C240 M5sx Advanced 2 |
|
