| Allmänt |

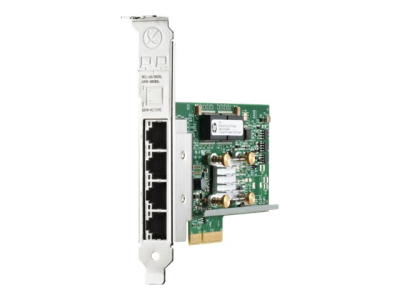

| Typ av enhet | Nätverksadapter |
| Formfaktor | Instickskort - låg profil |
| Gränssnittstyp (buss) | PCI Express 2.0 x4 |
| Version av PCI-specifikation | PCIe 2.0 |
| Nätverk |
| Portar | Gigabit Ethernet x 4 |
| Anslutningsteknik | Kabelansluten |
| Typ av kablage | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Datalänkprotokoll | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Dataöverföringshastighet | 1 Gbps |
| Statusindikatorer | Portöverföringshastighet, länk/akvititet |
| Funktioner | Jumbo Frames-support, PXE-support, LSO |
| Standarder som följs | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az |
| Processor / Minne |
| Processor | 1 x Broadcom BCM5719 |
| Expansion/Anslutning |
| Gränssnitt | 4 x 1000Base-T - RJ-45 |
| Kompatibla kortplatser | 1 x PCI Express 2.0 x4 |
| Diverse |
| Inkluderade tillbehör | Hållare för låg version, hållare med full höjd |
| Standarder som följs | VCCI Class B ITE, EN 61000-3-2, EN55022, EN 61000-3-3, FCC Part 15 B, WEEE, RoHS |
| Dimensioner och vikt |
| Djup | 13.2 cm |
| Höjd | 6.9 cm |
| Miljöparametrar |
| Min temperatur vid drift | 0 °C |
| Max temperatur vid drift | 55 °C |
| Luftfuktighet vid drift | 10 - 90 % (icke-kondenserade) |
| Kompatibilitetsinformation |
| Designat för | HPE Apollo 4200 Gen10, 4200 Gen9 for Google
HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10
HPE ProLiant DL120 Gen10, DL180 Gen10, DL180 Gen10 Entry, DL180 Gen10 SMB, DL20 Gen9 Solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice, DL388p Gen8 Base, DL560 Gen10 for SAP HANA Compute Block, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance, MicroServer Gen10, MicroServer Gen10 Solution, MicroServer Gen10 Stockage Collaboration, ML110 Gen10 Solution, ML30 Gen10, ML30 Gen10 Entry, ML30 Gen10 Performance, ML30 Gen10 Solution, ML30 Gen9 Entry, ML30 Gen9 Solution, ML350 Gen10 Base, ML350 Gen10 High Performance, ML350 Gen10 Performance, ML350 Gen10 SMB, ML350 Gen10 Solution, ML350 Gen10 Special Server, ML350 Gen10 Sub-Entry, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL170r Gen10 36TB Add-on Server for Cohesity DataPlatform, XL170r Gen10 Server for BlueData EPIC, XL190r Gen10, XL190r Gen10 for HPE Ezmeral Container Platform, XL450 Gen10
HPE SimpliVity 325 Gen10 Node, 380 Gen10 G Node, 380 Gen10 H Node, 380 Gen10 Network Choice G Node, 380 Gen10 Network Choice H Node, 380 Gen10 Node
HPE StoreEasy 1660 Expanded Storage |
|
