- 4K 60Hz resolution support for vivid and detailed visuals
- Supports advanced audio formats including DTS:X and Dolby Atmos for immersive sound
- Extends HDMI, RS232, and IR signals over up to 100 m using CAT 6a cable
- Features 8 kV ESD Protector and HDCP 2.2 compliance for enhanced signal protection
- Power over HDBaseT (PoH) for simplified installation and power management

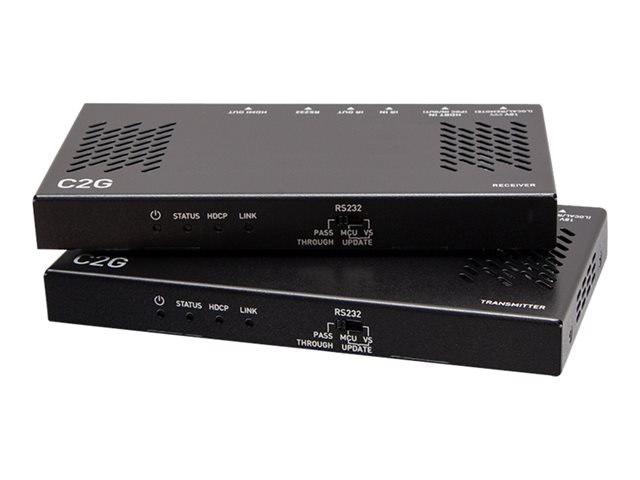

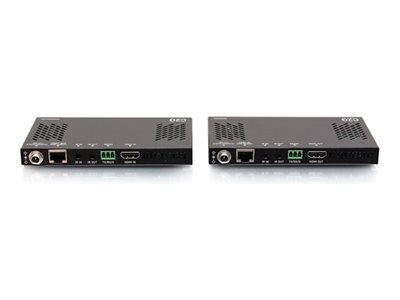

The HDMI HDBaseT + RS232 and IR over Cat Extender Box Transmitter to Box Receiver (18 Gbps) - 4K 60 Hz allows a 4K HDMI source to be extended up to 328 feet to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where HDMI video and audio in conference rooms, classrooms, lecture halls, and many other installation needs are far beyond the length limitations of standard HDMI cabling.
Extend 4K HDMI up to 230 feet and 1080p up to 328 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI or up to 328 feet using a Cat6a cable.

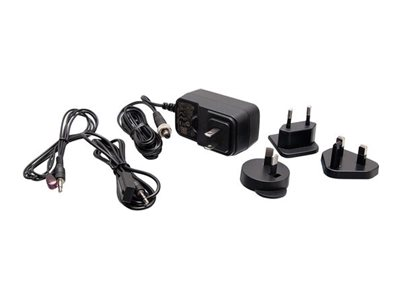

This HDMI HDBaseT receiver supports Visual Lossless Compression (VLC), which means the compressed data will appear identical to the uncompressed data. The receiver is also HDCP 2.2 compliant, making sure that the connection from the source is secure. With bi-directional Power over Cable (PoC) support, one power adapter at either transmitter or receiver side can power both units, so no additional power adapter is required, allowing for greater flexibility in installations. Advanced users can control bi-directional IR and device control through the RS232 port.
