| Allmänt |

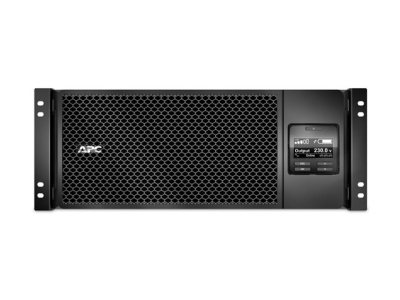

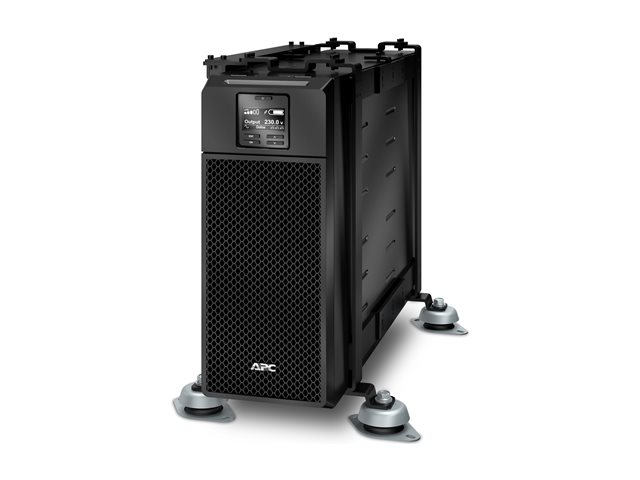

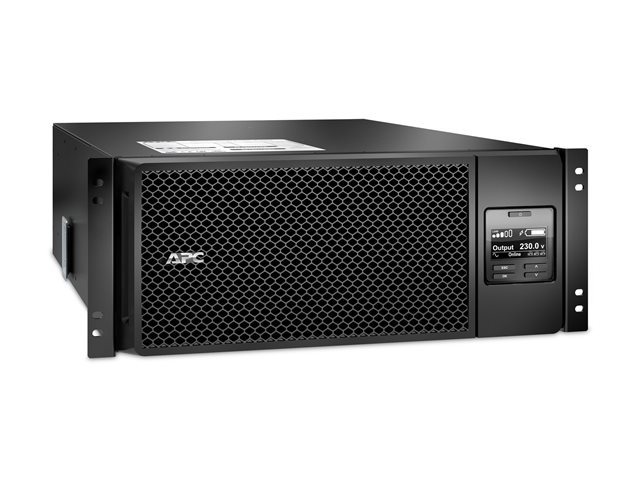

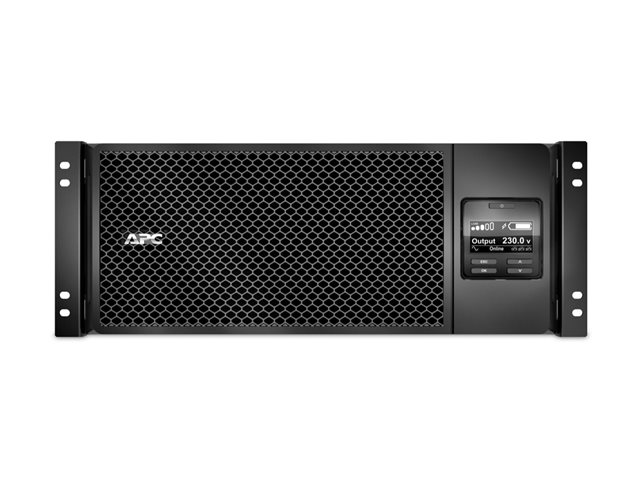

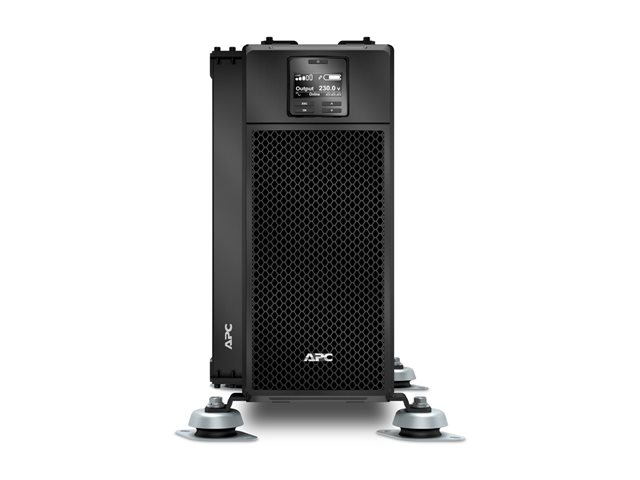

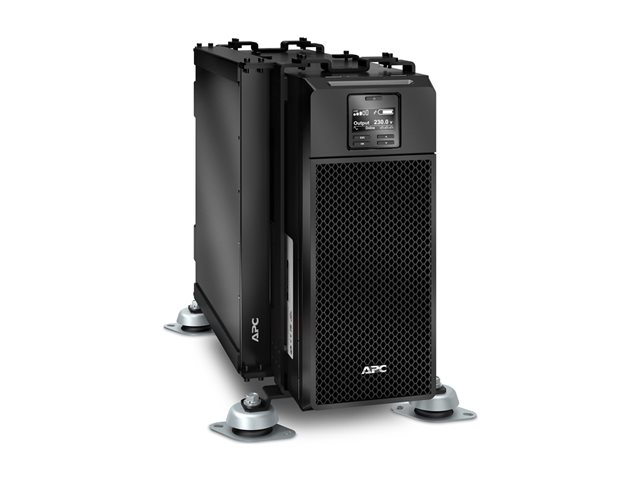

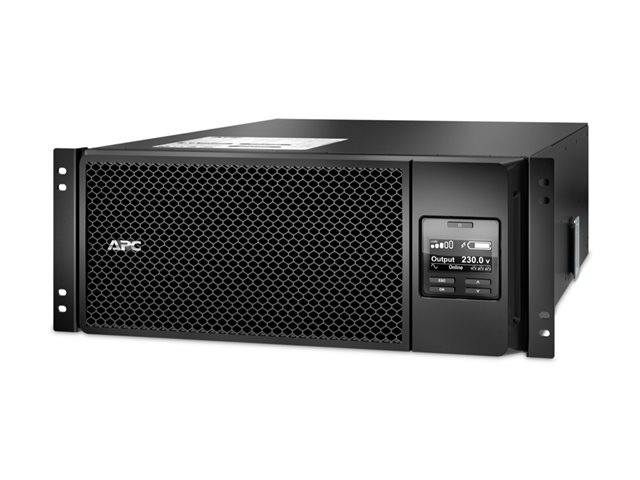

| Typ av enhet | UPS - rackmonterbar/extern |
| Höjd (U-format) | 4U |
| Nätdel |
| UPS-teknik | Online |
| Inspänning | AC 220/230/240 V |
| Inspänningens område | AC 100 - 275 V |
| Tillhandahållen frekvens | 50/60 Hz ± 3Hz |
| Erforderlig frekvens | 40 - 70 Hz |
| Inmatningsanslutningar | 1 x 3-trådig kabel (1PH + N + G) |

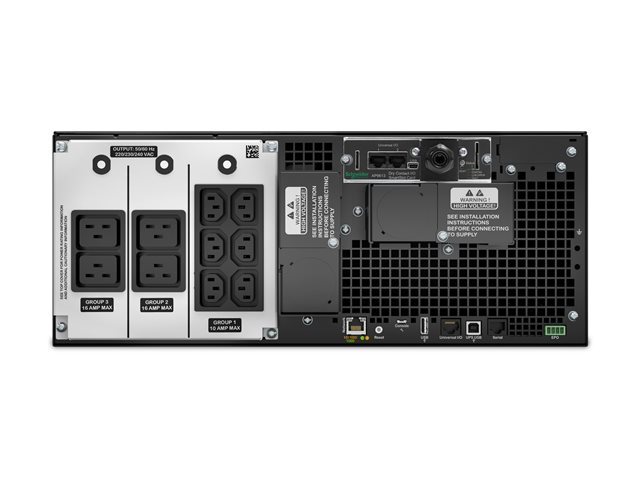

| Kontaktdetaljer för uteffekt | 6 x power IEC 60320 C13
4 x ström IEC 60320 C19 |
| Utspänning | AC 220/230/240 V 50/60 Hz |
| Effektkapacitet | 6000 Watt / 6000 VA |

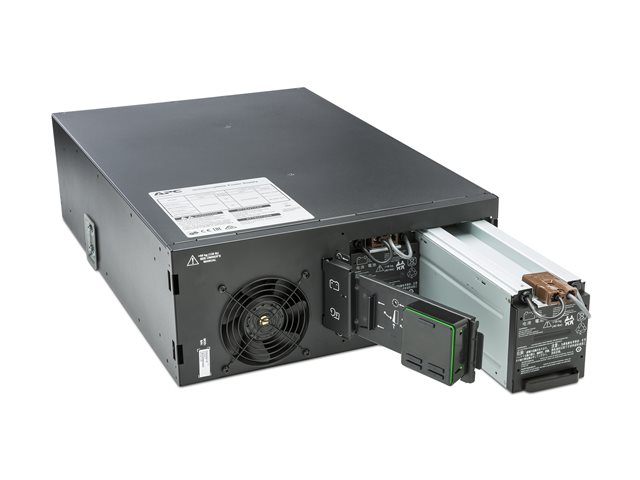

| Batteri |
| Teknik | Bly-syra |
| Runtime (upp till) | 3 min vid full laddning
9 min vid halv maskin |
| Laddningstid | 1.5 timmar |
| Egenskaper | Läcksäker, underhållsfri, förseglad |
| Nätverk |
| Gränssnitt för fjärradministration | Ethernet, serial |
| Expansion/Anslutning |

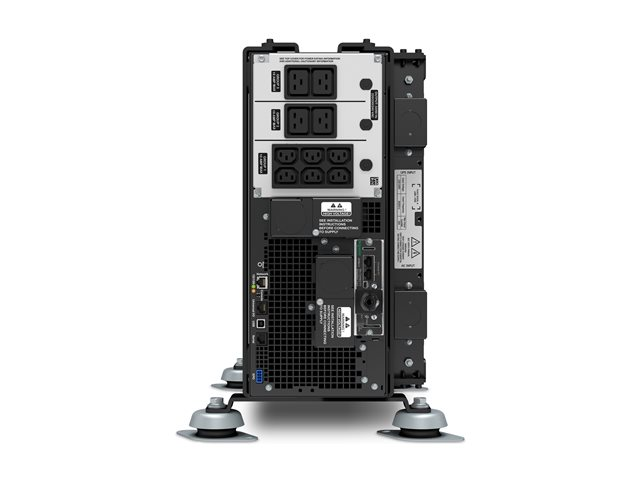

| Gränssnitt | 1 x EPO (emergency power off)
1 x seriell - RJ-45
1 x USB - 4-stifts USB typ B
1 x hantering (Ethernet) - RJ-45
1 x sensor - RJ-45 |
| Expansionskortplatser | 1 SmartSlot |
| Diverse |

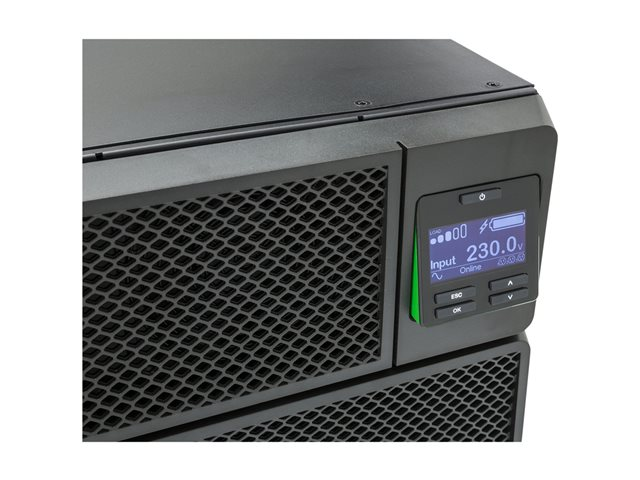

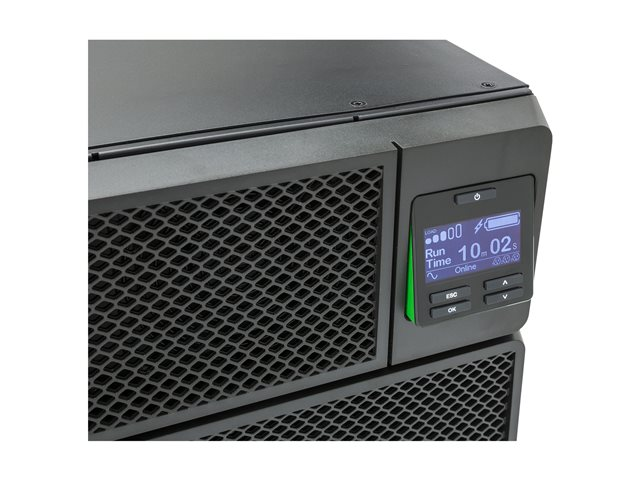

| Egenskaper | Nödavstängning, LED-fönster |
| Standarder som följs | EAC, IACS-E10, IEC 60945, IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, KCC, RCM, VDE, VFI-SS-111, IEC 62430 |
| Tillverkarens garanti |
| Service och support | Begränsad garanti - 3 år |
| Mått och vikt |
| Bredd | 43.2 cm |
| Djup | 71.9 cm |
| Höjd | 17.4 cm |
| Vikt | 60 kg |
| Kompatibilitetsinformation |
| Designat för | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC2513, ACF001, ACF002, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, AR7007, AR7050, AR7057, DLRT192RMBP, DLRT192RMBP2, NBWL0356A, SRT1500RMXLI-NC, SRT1500XLI, SRT192RMBPM, SRT2200XLI-KR, SRT5KXLT, SUA1500R2X93 |
|
